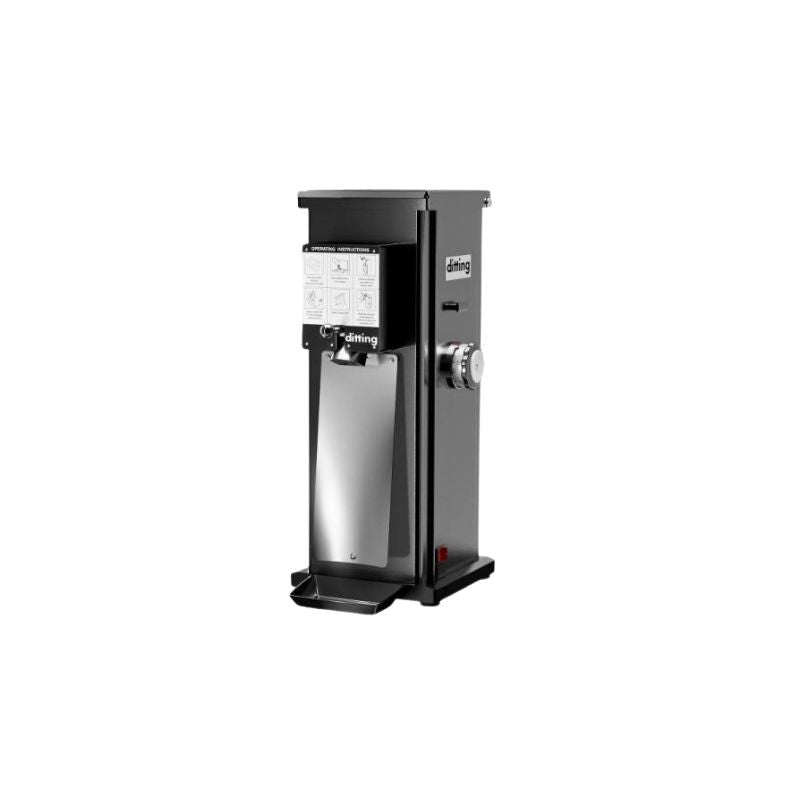

Ditting 1403 Shop Grinder – Extreme-Speed Grinding for High-Volume Coffee Service
The Ditting 1403 Shop Grinder is a powerful, fast, and precise solution for cafés, grocery stores, and roasters that need to grind large volumes of coffee with consistency and ease. Designed to perform in front-of-house and back-of-house retail environments, this grinder combines Swiss engineering, cast steel burrs, and intuitive operation in a compact, durable format.
It’s the perfect tool for filling retail bags, prepping large batch brews, or supporting a self-service grind station—delivering a superior grind experience every time.
Key Features
Retail-Ready Grinding Speed
The 1403 Shop Grinder handles up to 4.85 lbs per minute, making it ideal for bag grinding in-store or behind the counter. Customers get fresh coffee fast—without compromising quality.
140 mm Flat Steel Burrs for Consistency
Ditting’s legendary 5.5-inch burrs ensure precise, uniform particle sizes for a wide range of brew methods—batch brew, cold brew, French press, and more.
Stepless Grind Adjustment
The precision dial gives operators total control over grind size, from fine to coarse. Whether you’re switching between blends or adjusting for roast levels, the 1403 adapts effortlessly.
Clean, Quiet, and Easy to Use
Smooth, low-vibration operation reduces noise and static—perfect for customer-facing setups. The spout and integrated bag clamp minimize mess and speed up workflow.
Durable for Daily Commercial Use
With a high-performance motor and rugged burr set, the 1403 Shop Grinder is designed for years of reliable service in high-traffic environments with minimal maintenance.
Applications & Benefits:
Ideal for high-volume coffee shops, wholesale grinding services, and roasteries, the Ditting 1403 ensures speed, strength, and consistency under constant demand. Its legendary durability and efficiency make it the go-to solution for businesses needing continuous grind capacity from open to close.
Voltage // frequencies // phases:
-
380-415 V // 50/60 Hz // 3~
-
200-240 V // 50/60 Hz // 3~
Revolutions per minute: 1400 rpm (50 Hz)
Burr diameter: 140 mm
Burr material: Special steel
Burr grind life (median setting): ca. 10-15 tons
Average grinding capacity*: 2200 g/min
Bean hopper capacity: approx. 1100 g
Nominal power: 1700-2000 W
Dimensions (w x h x d): 10.2" x 25.2" x 13.4" (260 x 640x 340mm)
Net weight: 83.76 lbs (38kg)
Available versions:
-
KFA: Automatic bag clamp (no bag shaking unit)
-
KR: Manual bag clamp (with bag shaking unit)
Equipment Features:
-
Powerful three-phase motor
-
Grind size adjustment with extraction information
-
KR: Bag clamping lever and knocker unit
-
KR: Shaker plate
Ideal Applications
Coffee Shops & Cafés: Grind fresh coffee for retail bags or batch brew on demand.
Roasteries: Provide custom grind sizes for wholesale or in-store customers.
Grocery Stores: Excellent for behind-the-counter or customer-facing grinding stations.
Hospitality Venues: Support breakfast buffets or event setups with fast, reliable grinding.
Farmer’s Markets & Pop-Ups: Deliver consistent grinds on-site for whole bean sales.
Why Choose the Ditting 1403 Shop Grinder?
The 1403 Shop Grinder delivers the performance of an industrial machine in a more accessible, café-friendly footprint. If you’re grinding 20–50 lbs per day for customers, batch brew, or bulk bins, it gives you the speed, consistency, and quality you need without skipping a beat.
It’s the ultimate retail coffee grinder—quiet, clean, and built to move serious volume with serious precision.
